Mastering High Contrast: Canon C400’s Triple Base ISO in the Las Vegas Desert

Shooting in Southern Nevada offers iconic backdrops like Valley of Fire and Jean Dry Lake. However, these locations present a brutal exposure challenge, featuring mid-day sun pushing beyond 18 stops alongside deep shadow contrast.

To conquer the extreme exposure ranges of the Mojave Desert, you need a sensor built for high dynamic range. Fortunately, the Canon EOS C400—available at F11 Rentals—houses a full-frame 6K Backside-Illuminated (BSI) sensor equipped with Triple Base ISO and internal motorized ND filters.

Consequently, mastering the C400’s native gain circuits is the easiest way to protect your highlights, salvage shadow detail, and execute a flawless desert production.

1. Choosing Your Base ISO

Instead of pushing ISO settings digitally, the C400 uses three separate native sensor modes:

• Base 800 (Midday Sun): Maximizes highlight protection so bright skies, sand, and skin tones do not blow out.

• Base 3200 (Shadows & Sunset): Boosts sensor sensitivity cleanly for slot canyons or shaded talent without adding digital noise.

• Base 12,800 (Night & Firelight): Enables clear night shooting without hauling heavy generators into the desert.

2. Managing Harsh Sunlight: Base ISO 800 + Internal NDs

When filming under direct sunlight, your primary goal is protecting sky highlights and skin tones from clipping.

First, lock in Canon Log 2 at Base ISO 800 to allocate maximum latitude to the highlights above 18% middle gray. Next, engage the camera’s internal electronically controlled ND system instead of stacking heavy glass filters that attract desert dust and glare:

• 2 to 6 Stops: Standard internal wheel adjustments for moderate sunlight.

• 8 to 10 Stops (Extended Mode): Combines internal filters to drop exposure under intense dry lake bed glare.

As a result, dropping 8 stops of internal ND at Base 800 allows you to shoot wide open at T2.4 on our NiSi Athena PL Primes, maintaining a shallow depth-of-field under blistering noon light.

3. Conquering Shadow Contrast: Base ISO 3200 in Canyons

In contrast to open desert, slot canyons and rock formations present severe contrast gaps between bright skies and deep sandstone shade.

Whenever your talent moves under heavy shade, simply switch the camera to Base ISO 3200. Because Base 3200 engages a secondary hardware circuit on the sensor, it avoids digitally pushing ISO 800. Ultimately, you retrieve rich shadow detail without elevating the noise floor.

4. Essential Desert Gear Pairings at F11

To maximize your desert rig, consider combining the C400 with key items from our local inventory:

• Lens Synergy: Pair the C400 with our NiSi Athena PL Primes or Angenieux EZ Zooms. Matching gear positions and unified color profiles ensure fast, dust-free lens swaps.

• Autofocus Tracking: Utilize Canon’s Dual Pixel CMOS AF II to keep sharp focus on subjects moving across uneven terrain.

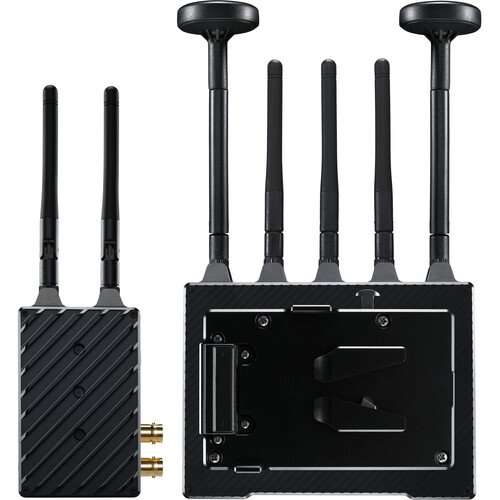

• Monitoring: Route signals to high-bright SmallHD monitors via Teradek Bolt 4K systems, allowing directors to check exposure tools clearly in harsh ambient light.
