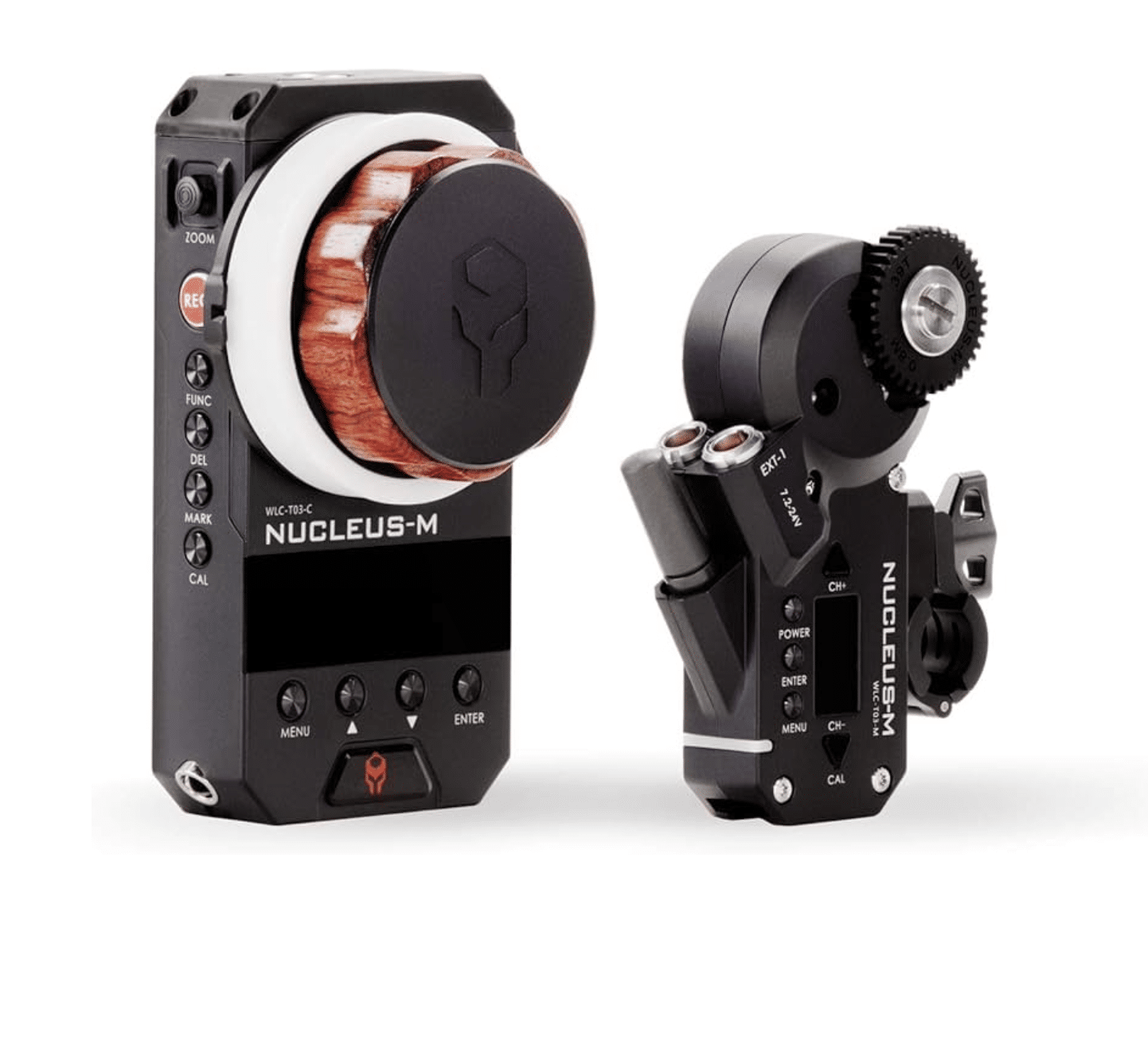

The Tilta Nucleus-M Wireless Lens Control System features a 1000′ transmission range and comes with two lens drive motors with built-in wireless receivers, a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear and two 7-pin connectors, enabling you to freely swap or interchange each motor. The motors are power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.
The FIZ hand controller allows you to control focus, iris, and zoom, and it includes a neck strap. The handgrips feature adapters that enable mounting the controllers onto ARRI-compatible rosettes or onto 25/30mm diameter rods, such as those used with gimbals. The system comes packed in a waterproof hard case that protects your gear during transport and storage.
The system features three ranges: low, medium, and high. It supports up to 15 channels to select from, and the controllers pair with each motor via the motor ID.
The FIZ hand unit can control three channels (focus, zoom, and iris), as well as override the handgrips.
The motors can calibrate on lenses with or without hard stops, such as a photo lens with follow focus gears.
The motors feature cine standard 0.8 MOD 32 pitch drive gears. Each motor includes a 19mm rod clamp and a 15 to 19mm adapter bushing, allowing you to mount the motors onto either a 15mm or 19mm rod.
The motors power from a D-Tap connector, and then pass power by daisy-chaining via the 7-pin connectors with the included cables.
The FIZ hand controller and each handgrip power via two 18650 3000mAh, 3.7V Li-ion batteries.
The batteries in the FIZ hand controller will last for more than 10 hours, and up to 48 hours in each handgrip, when idle.
