Decimator DMON-QUAD

$50.00

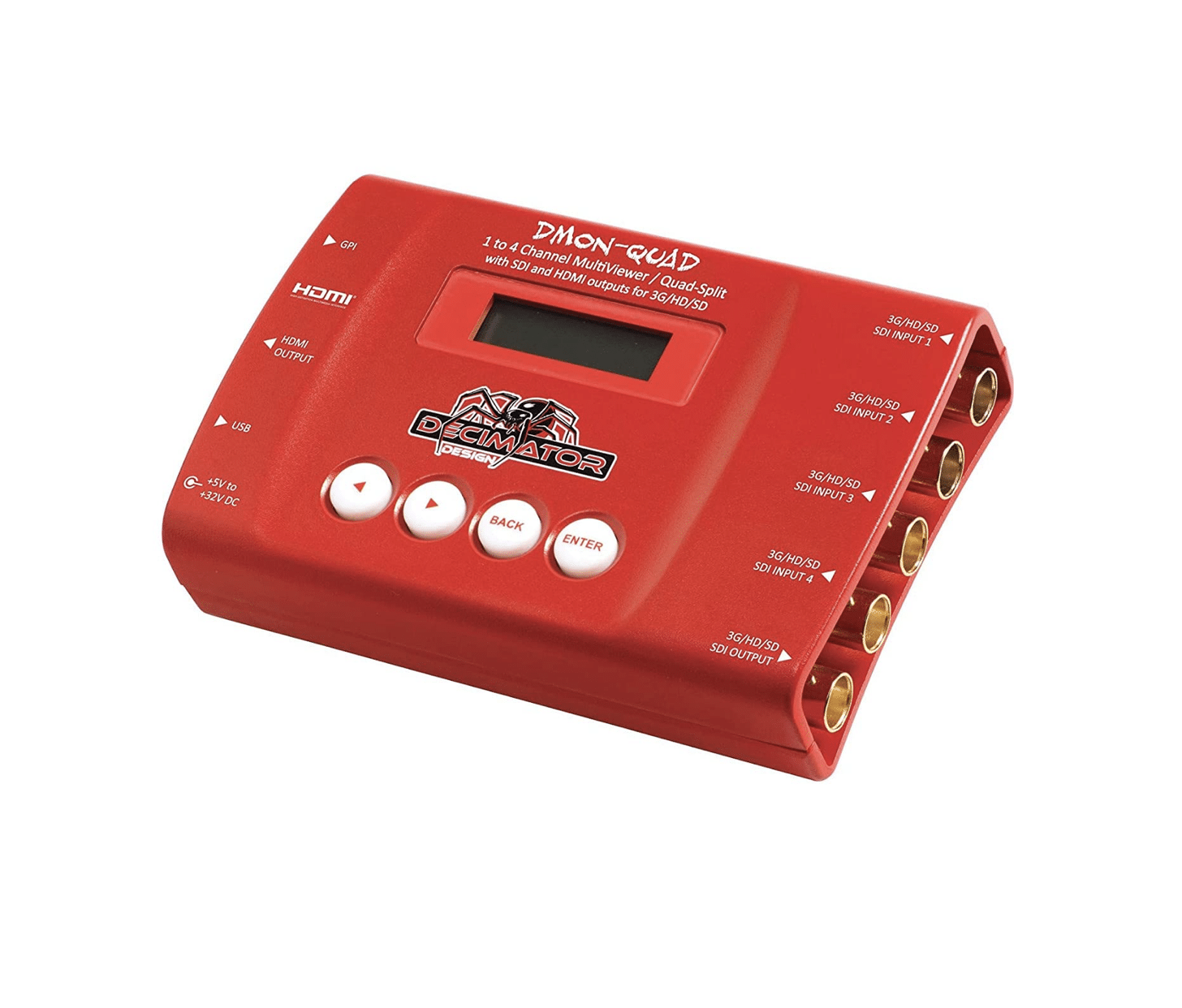

The DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display. Tally information can be supplied via the RJ-45 connector.

Description

Decimator DMON-Quad

Package Includes:

  • Decimator
  • AC Power Adapter
  • Carrying Case
  • BNC and HDMI

Additional information
Inputs

4 x BNC, SD/HD/3G-SDI
1 x USB Mini-B, control and updates
1 x RJ-45, UMD and Tallies via RS-422/485

Outputs

1 x SD/HD/3G-SDI
1 x HDMI

Resolution Support

SDI:
1080p 23.98/24/29.97/30/50/59.94/60
1080PsF 23.98/24/29.97/30
1080i 50/59.94/60
720p 23.98/24/29.97/30/50/59.94/60
NTSC
PAL

HDMI:
1080p 23.98/24/29.97/30/50/59.94/60
1080PsF 23.98/24/29.97/30
1080i 50/59.94/60
720p 23.98/24/29.97/30/50/59.94/60
NTSC
PAL

Power

Input: 5-32 VDC, locking coaxial (center positive)

Dimensions

3.1 x 4.8 x 1.2" / 8 x 12.3 x 3 cm
